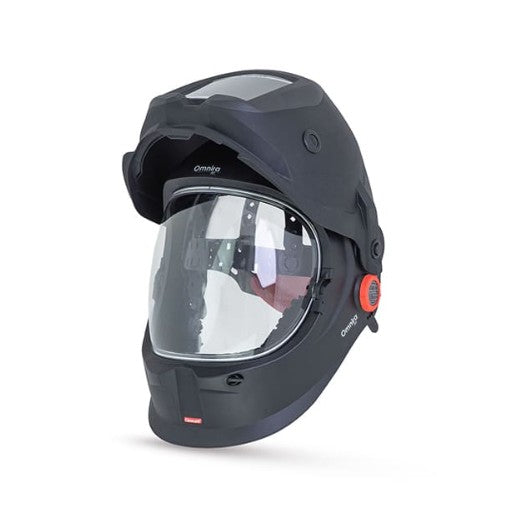

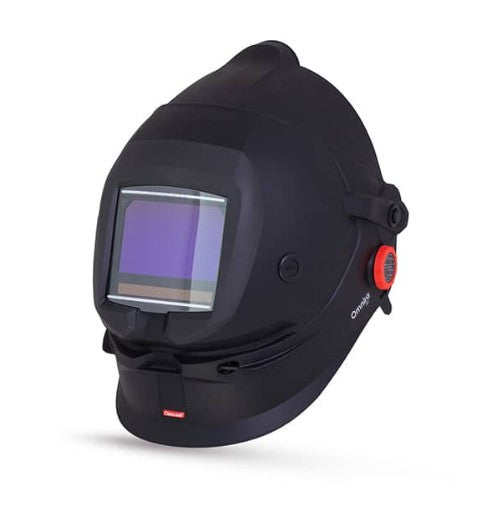

Omnira COMBI Air Welding Helmet
The CleanAIR Omnira COMBI Air Welding Helmet combines advanced welding eye protection with powered air respiratory protection for demanding industrial environments. Featuring an auto-darkening welding lens, integrated air distribution system and flip-up welding shield, it provides comfortable all-day protection against welding fumes, sparks and airborne contaminants. Designed for use with compatible CleanAIR powered air purifying respirator (PAPR) systems.
Product Code: CA-703201
One solution for many needs.
Auto darkening welding helmet with an advanced built-in air distribution system and flip-up welding shield.
Provides protection for eyes and face from harmful radiation including visible light, ultra-violet (UV), infra-red (IR) radiation, hot sparks and spatters resulting from arc welding and cutting.
Integrated air distribution works with all CleanAIR PAPR and Airline systems providing the highest level of respiratory protection TH3
Lightweight and durable shell meets the requirements of EN 175 B and thus ensuring protection against high-speed particles
Adjustable airflow can be regulated between two zones for individual comfort
Zone 1: control knob accessible from outside the helmet controls the direction of the air coming from the lower part of the air duct.
Zone 2: the two other outputs are located in the upper part of the helmet. The intensity of the airstream can be regulated by the two sliders inside the helmet.
ADF S60F offers true colour display for increased colour perception and excellent clarity of vision.
Large viewing area 98 x 62mm.
Ten dark shades available for various welding jobs.
Four sensors for stable arc detection.
Highest level of optical standards EN 379:
Optical quality: Class 1
Light scattering: Class 1
Homogeneity: Class 1
Angular dependence: Class 1

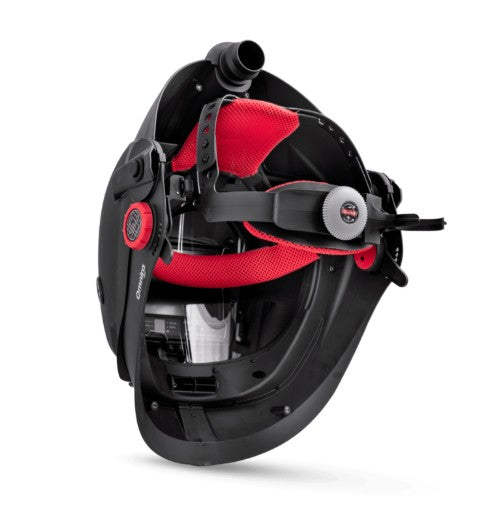

Easily adjustable head harness provide comfort for all head shapes. The smooth rachet mechanism allow precise adjustment of the head circumference and a secure fit.
Applications:
MIG/MAG Welding
SMAW
TIG Welding
Plasma Arc Welding and cutting
Carbon arc gouging
Gas welding and cutting
Grinding
Surface finishing
SPECIFICATIONS
| Weight | 1017g |
| Material | Welding shield – PA ADF – PA, PC, Glass Protection plate – PC Headgear – PP, PA |
| ADF Dimensions | 110 x 90 x 7 mm |
| Shade Level | DIN 5–14 Open state shade DIN 3 |
| Hose Connection | QuickLOCK™ |
| View Area | 98 x 62 mm |
| Certification / NPF – Respiratory Protection | Powered air purifying respirators – EN 12941, TH3 / NPF 500 airline systems (supplied air) – EN 14594 (3B) / NPF 200 |
| Certification – Eye and Face Protection | Protective visor TR1 – EN166 1 FT B K N Frame – EN166 3 4 5 FT B 5/2-5 |
Unit of Measure: EACH
