Flammable Liquid Storage Cabinet (Metal)

• Flammable liquid storage cabinet.
• Suitable for storage of class 3 flammable or combustible liquids such as paint, solvents, petrol, thinners, kerosene, turpentine, white spirits, alcohol, ethanol, diesel, linseed oil and more.
• Manufactured to meet AS 1940 standards for the storage and handling of flammable and combustible liquids.
• Key features include:
  • Double steel walls
  • Self-closing and latching door
  • 150mm deep liquid light sump
  • Recessed door handle with key lock
  • 50mm vent bungs with flash arresters
  • Static earthing connection
  • Adjustable shelves
  • Adjustable feet
  • Classification labels
  • Continuous piano hinge

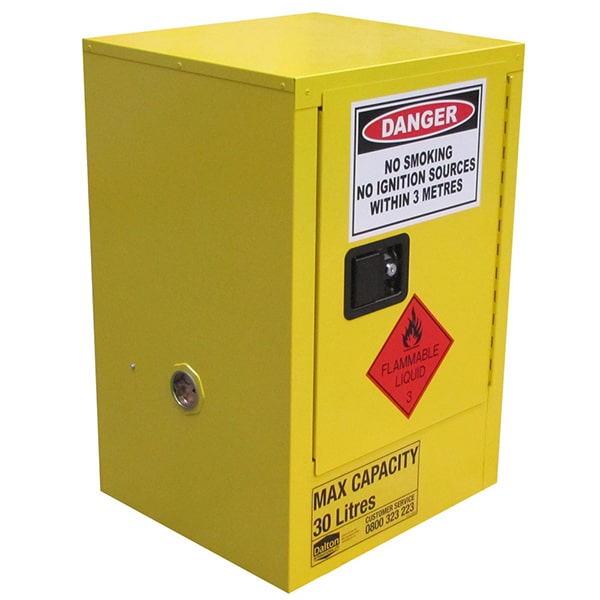

30L Cabinet

• Capacity: 30L
• Doors: 1
• Shelves (Incl. Base Level): 2
• External Dimensions: 770mm (H) x 515mm (W) x 465mm (D)
• Internal Dimensions: 525mm (H) x 420mm (W) x 370mm (D)

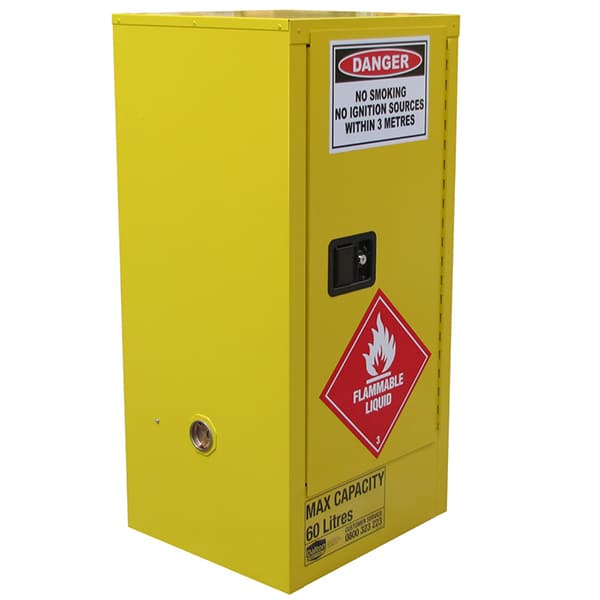

60L Cabinet

• Capacity: 60L
• Doors: 1
• Shelves (Incl. Base Level): 2
• External Dimensions: 1065mm (H) x 515mm (W) x 465mm (D)
• Internal Dimensions: 820mm (H) x 420mm (W) x 370mm (D)

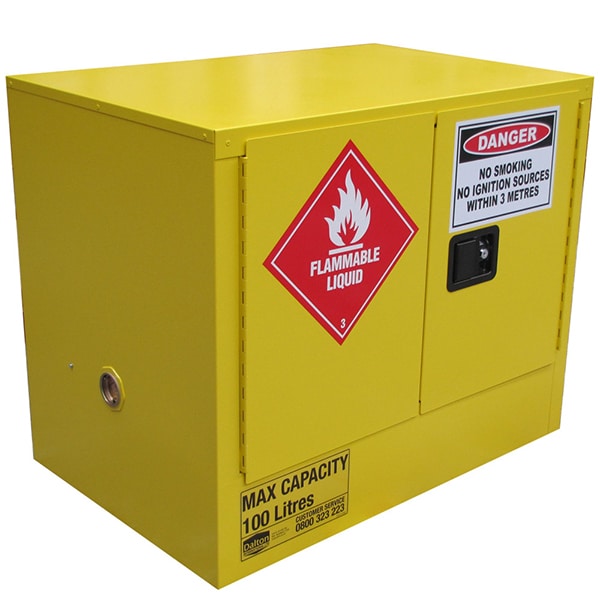

100L

• Capacity: 100L
• Doors: 2
• Shelves (Incl. Base Level): 1
• External Dimensions: 770mm (H) x 935mm (W) x 620mm (D)
• Internal Dimensions: 495mm (H) x 840mm (W) x 530mm (D)

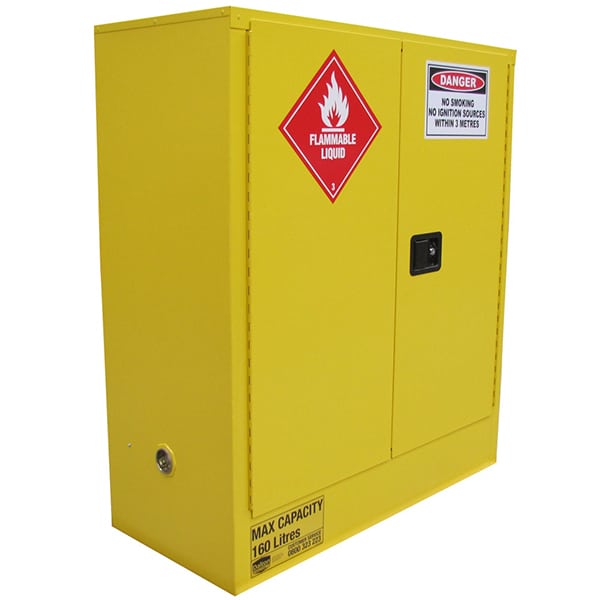

160L

• Capacity: 160L
• Doors: 2
• Shelves (Incl. Base Level): 2
• External Dimensions: 1295mm (H) x 1115mm (W) x 500mm (D)
• Internal Dimensions: 1015mm (H) x 1020mm (W) x 415mm (D)

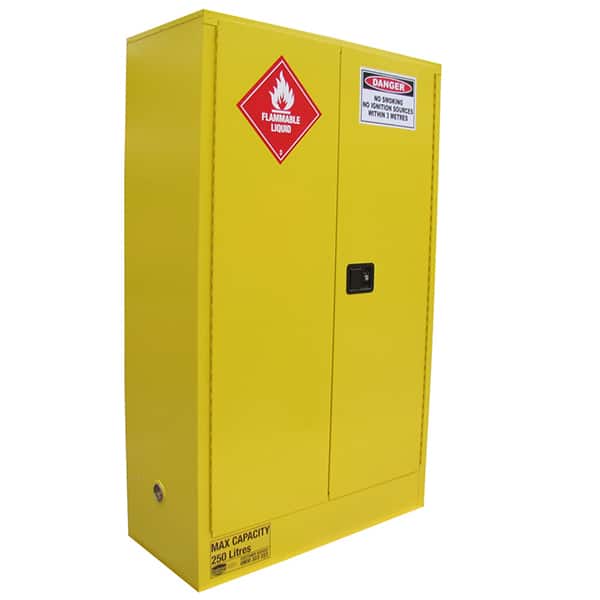

250L

• Capacity: 250L
• Doors: 2
• Shelves (Incl. Base Level): 3
• External Dimensions: 1825mm (H) x 1115mm (W) x 500mm (D)
• Internal Dimensions: 1545mm (H) x 1020mm (W) x 415mm (D)

250L Oversized - For larger bulky containers

• Flammable liquid storage cabinet.
• Suitable for storage of class 3 flammable or combustible liquids such as paint, solvents, petrol, thinners, kerosene, turpentine, white spirits, alcohol, ethanol, diesel, linseed oil and more.
• Manufactured to meet AS 1940 standards for the storage and handling of flammable and combustible liquids.
• Key features include:
  • Double steel walls
  • Self-closing and latching door
  • 150mm deep liquid light sump
  • Recessed door handle with key lock
  • 50mm vent bungs with flash arresters
  • Static earthing connection
  • Adjustable shelves
  • Classification labels
  • Continuous piano hinge
• Capacity: 250L (maximum allowable for indoor cabinet under NZ Legislation)
• Doors: 2
• Shelves (Incl. Base Level): 3
• External Dimensions: 1825mm (H) x 1440mm (W) x 585mm (D)
• Internal Dimensions: 1550mm (H) x 1345mm (W) x 494mm (D

 Additional shelves can be purchased separately

Notes: For single door cabinets, the internal height is taken from the top of the sump sill/bottom shelf to the ceiling. For total external width measurement, add 6mm vent bung for tight clearance locations.
